Box Construction

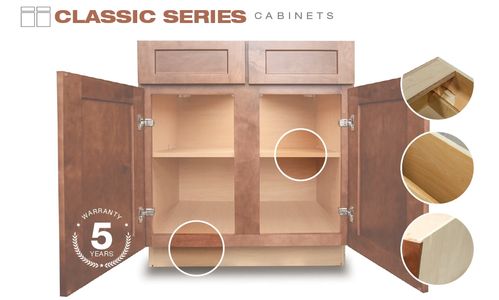

CLASSIC SERIES

End Panels
1/2” Plywood with laminated
natural birch woodgrain interior and unfinished plywood exterior


Top, Bottom, & Floors
1/2” Plywood, laminated natural birch woodgrain interior


Shelves
3/4” Plywood, laminated natural birch woodgrain on both sides.
Matching PVC edge banding on front edges. Adjustable, full depth

Backs
1/2” Plywood back with laminated
natural birch woodgrain interior


Toe Board
1/2”Plywood, 5 1/2” high extends to underside of cabinet floor

Countertop Supports
3/4” thick x 3” wide plywood
stretchers/I-beams

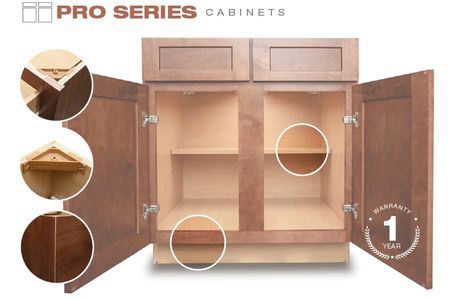

PRO SERIES
End Panels
1/2” Particleboard with laminated
natural birch woodgrain interior and matchi



PRO SERIES

End Panels
1/2” Particleboard with laminated
natural birch woodgrain interior and matching laminated exterior on
available colors


Top, Bottom, & Floors
1/2” Particleboard, laminated natural birch woodgrain interior


Shelves
3/4” Particleboard, laminated natural birch woodgrain on both sides.
Matching PVC edgebanding on front edges. Adjustable, 1/2 depth

Backs
1/2” Particleboard back with laminated natural birch woodgrain interior

Toe Board
1/2” Particleboard, 5 1/2” high extends to underside of cabinet floor

Countertop Supports
Polymer corner blocks

DRAWER BOX UPGRADE OPTIONS



Plywood Dovetail Drawer

• 1/2” plywood sides and ends, UV clear coat,

dovetail joints, 1/4” bottom, dado fitted into sides and ends.

• 7/8 extension (full access), concealed undermount, soft close drawer guide, height adjustment, 75 lb capacity

Hardwood Dovetail Drawer

• 5/8” solid wood sides and ends, UV clear coat, dovetail joints, 1/4” plywood bottom, dado fitted into sides and ends,

• Full extension, concealed undermount, soft close drawer guide, height adjustment, 75 lb capacity

Cabinet build features



Face Frame
3/4” x 1 3/4” stiles and rails, joined using glue and wood screws


Drawer Box
1/2” Plywood sides and ends, laminated natural birch woodgrain on both sides, 1/4” bottom stapled and
captured by guides


Drawer Guide
3/4” extension, side mount, self-closing, double captive, epoxy coated drawer guide. 75 lb capacity

Soft Close Hinges
Soft close, concealed cup hinge. 110 degree opening


Joinery
All joints are dadoed, glued and stapled


Toe Space Notch
3 1/4” x 4 1/2”
